Deep Hole Drilling

Precision Engineering at Its Core
At AC Honed Tube, we specialise in deep hole drilling, boring and gun drilling solutions engineered for precision, performance, and reliability. We manufacture tubes and components to customer‘s specifications. With years of experience in the hydraulic and general engineering industries, we offer expert drilling services that meet the most demanding specifications — from prototype components to high-volume production.

What is Deep Hole Drilling?

Deep hole drilling is a specialised machining process used to create holes where standard drilling methods often fail to maintain straightness, surface finish, and dimensional accuracy over deep depths. DHD is done on solid bars. Our advanced deep hole drilling technology overcomes these challenges, providing consistent results across a wide range of materials and diameters.

What is Boring?

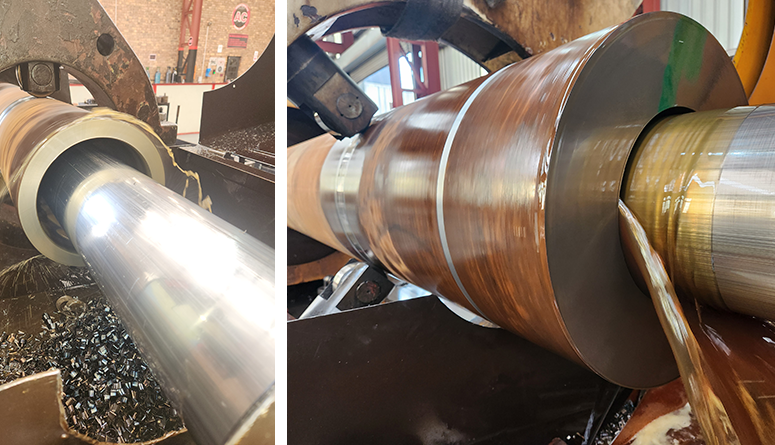

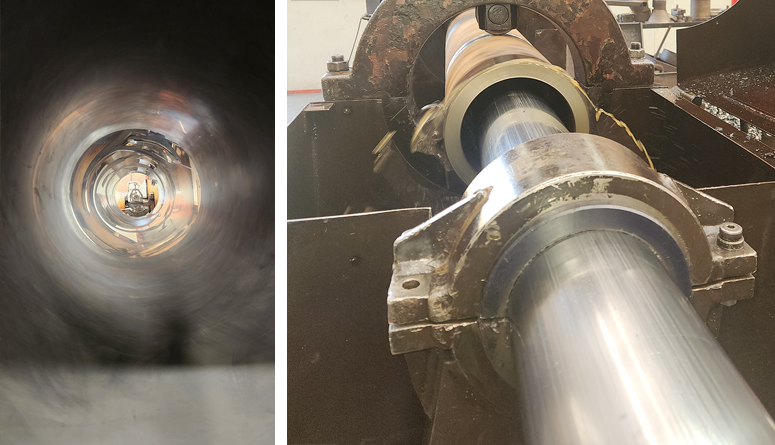

Boring is a machining process used to enlarge and accurately finish the internal diameter of a pre-drilled or cast hole. When applied to hollow bar, this process is essential for achieving tight dimensional tolerances, improved roundness, — especially when standard-sized hollow bar does not meet your exact requirements. This process is often a critical first step before honing, chrome plating, or final machining, particularly in applications demanding high performance and precision. We are using an internal coolant channel to efficiently remove chips.

What is Gun Drilling?

Gun drilling is a precision machining process used to produce deep, straight holes with exceptional accuracy. Originally developed for drilling gun barrels — hence the name — this method uses a long, slender cutting tool with an internal coolant channel to efficiently remove chips and maintain dimensional control at extreme depths. We are also able to do Gun Drilling on a PCD.

Our Capabilities

Unmatched Range of Inside Diameters
We understand that every project comes with its unique challenges and requirements. That's why we offer an extensive range of drilling services, capable of handling inside diameters:

• from as small as 5mm inside diameter

• up to a substantial 1100mm inside diameter

• up to 12m in length

• Ø300mm can be drilled straight from solid up to 8m deep

• 1600mm swing over bed

• Steady up to 1200mm

• Up to 20Ton load bearing

Whether you need intricate, fine drilling for delicate components or large-scale drilling for robust industrial applications, we have the expertise and equipment to deliver flawless results.

State-of-the-Art Technology

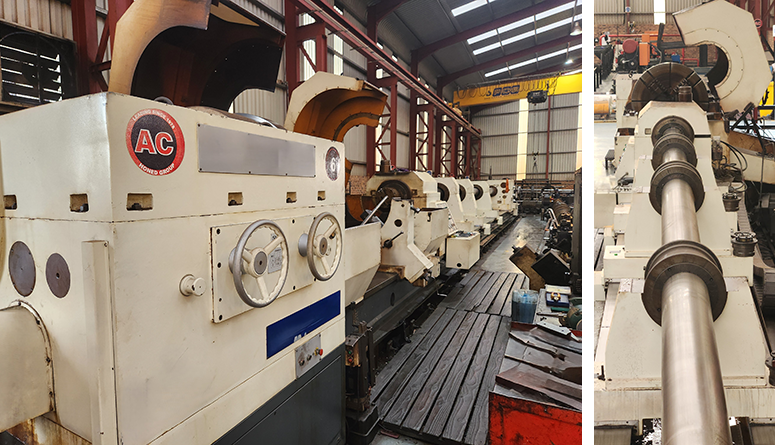

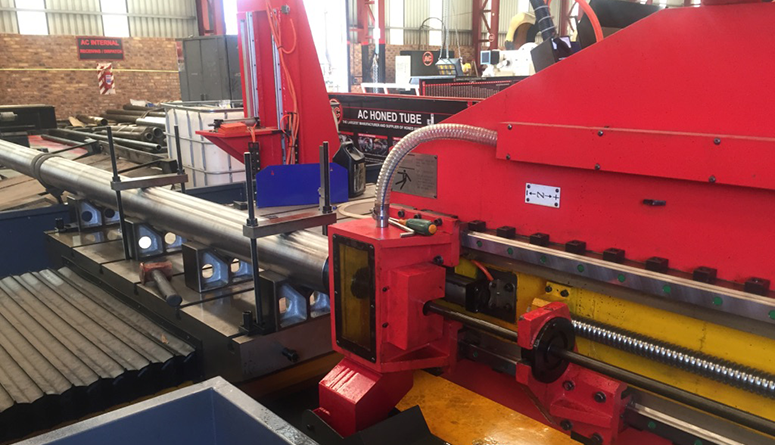

Our facility is equipped with cutting-edge technology and machinery, enabling us to perform deep hole drilling, boring and gun drilling with unparalleled precision. Our advanced tools and techniques ensure that each hole meets stringent specifications, maintaining exact tolerances and superior surface finishes. We continuously invest in the latest technology to keep our capabilities at the forefront of the industry.

Why Choose AC Honed Tube?

• Specialised Machinery: Our machines are purpose-built for high accuracy and efficiency, with through-spindle coolant systems and chip evacuation technology.

• Skilled Operators: Our technicians are highly trained to handle complex drilling requirements, ensuring consistency and precision throughout the job.

• Quality Assurance: Every drilled component undergoes strict quality checks for dimensional accuracy, straightness, and internal finish.

• Quick Turnaround: We understand the urgency of production timelines and work to deliver on time, every time.

• Custom Solutions: No two projects are alike, and we pride ourselves on offering customized drilling solutions tailored to your specific needs. Our team works closely with you to understand your requirements and provide personalized service that ensures your project’s success. We tailor our services to meet your specific needs — whether it’s a one-off part or high-volume production.

Partner with AC Honed Tube for deep hole drilling services that combine engineering excellence with a commitment to quality. Contact our team today to discuss your project requirements or request a quote.
