Standard Range of Hydraulic Tubing

Stocked in Honed & Unhoned

Metric

IDxOD
Kg / m
BAR
30x40
4
500
32x40
4.5
400
35x45
5
444
40x50
6
400
40x60
13
667
45x55
7
364
50x60
7
333
50x65
11
462
55x65
8
308
55x70
12
429
60x70
8
286
60x75
13
400
63x75
11
320
63x76
12
342
63x78
14
385
63x83
18
482
65x75
9
267
65x77
10.5
312
65x80
14
375

IDxOD
Kg / m
BAR
70x80
10
250
70x82
11.3
293
70x85
15
353
70x90
20
444
70x95
25
526
75x90
16
333
75x95
21
421
75x100
28
500
80x90
11
222
80x92
13
261
80x95
17
316
80x100
23
400
80x105
29
476
80x110
36
545
85x100
18
300
85x105
24
381
90x105
19
286
90x110
25
364

IDxOD
Kg / m
BAR
91x105
17
267
92x105
16
248
95x110
20
273
95x115
26
348
100x115
20
261
100x116
22
276
100x120
28
333
100x125
35
400
100x130
43
462
104.5x120
21
258
105x120
21
250
105x125
29
320
110x125
22
240
110x130
30
308
110x140
46
429
115x130
23
231
115x140
40
357
120x140
33
286

IDxOD
Kg / m
BAR
120x145
41
345
120x150
50
400
125x140
25
214
125x145
34
276
125x150
43
333
130x150
35
267
130x160
54
375
135x160
45
313
140x160
38
250
140x165
48
303
140x170
58
353
150x170
40
235
150x180
64
333
160x180
43
222
160x185
54
270
160x190
65
316
160x200
89
400
165x185
44
216

IDxOD
Kg / m
BAR
165x190
55
263
170x190
45
211
170x200
69
300
180x200
46
200
180x205
60
244
180x210
73
286
180x215
86
326
180x220
99
364
185x203
44
177
185x212
67
255
190x205
37
146
190x215
63
233
190x220
67
273
200x215
40
140
200x220
53
182
200x230
80
261
200x240
108
333
200x250
139
400


IMPERIAL

IDxOD (mm)
IDxOD (inch)
Kg / m
BAR
44.45x53.975
1.3/4x2.1/8
4.6
353
44.45x55
1.3/4x55
7
384
50.8x60.325
2x2.3/8
7
316
50.8x63.5
2x2.1/2
9
400
50.8x65
2x65
10
436
57.15x69.85
2.1/4x2.3/4
10
364
60.325x70
2.3/8x70
8
276
60.325x75
2.3/8x75
13
391
63.5x76.2
2.1/2x3
11
333
63.5x78
2.1/2x78
13
372
66.67x80
2.5/8x80
12
333
69.85x80
2.3/4x80
10
254
69.85x85
2.3/4x85
15
356
76.2x85.7
3x3.3/8
10
222
76.2x88.9
3x3.1/2
13
286
76.2x95.25
3x3.3/4
21
400
76.2x101.6
3x4
29
500
82.55x95.25
3.1/4x3.3/4
14
267
82.55x101.6
3.1/4x4
22
375
88.9x101.6
3.1/2x4
15
250
88.9x107.95
3.1/2x4.1/4
24
353

IDxOD (mm)
IDxOD (inch)
Kg / m
BAR
88.9x114.3
3.1/2x4.1/2
32
444
95.25x110
3.3/4x110
19
268
95.25x114.3
3.3/4x4.1/2
26
333
101.6x114.3
4x4.1/2
17
222
101.6x120.65
4x4.3/4
27
316
104.775x120
4.1/8x120
22
254
104.775x125
4.1/8x125
29
324
107.95x130
4.1/4x5.1
32
339
107.95x133.35
4.1/4x5.1/4
38
381
114.3x127
4.1/2x5
19
230
114.3x130
4.1/2x5.1
23
242
114.3x133.5
4.1/2x5.1/4
30
286
114.3x139.7
4.1/2x5.1/2
40
364
120.65x139.7
4.3/4x5.1/2
31
273
120.65x145
4.3/4x145mm
40
336
127x139.7
5x5.1/2
21
182
127x142.24
5x5.6
26
214
127x146
5x5.3/4
33
260
127x152.4
5x6
44
333
130.175x152.4
5.1/8x6
39
292

IDxOD (mm)
IDxOD (inch)
Kg / m
BAR
133.35x152.4
5.1/4x6
34
250
139.7x158.75
5.1/2x6.1/4
34
239
139.7x160
5.1/2x160mm
38
254
139.7x165.1
5.1/2x6.1/2
48
308
139.7x170
5.1/2x170mm
59
356
152.4x165
6x6.1/2
25
153
152.4x171.45
6x6.3/4
39
222
152.4x177.8
6x7
52
286
158.75x177.8
6.1/4x7
40
214
158.75x184.15
6.1/4x7.1/4
54
276
165.1x184.15
6.1/2x7.1/4
42
207
165.1x190.5
6.1/2x7.1/2
56
267
177.8x203.2
7x8
60
250
184.15x203.2
7.1/4x8
46
188
190.5x215.9
7.1/2x8.1/2
64
235
190.5x220
7.1/2x220mm
75
268
203.2x215
8x215mm
30
109.8
203.3x228.6
8x9
68
222
203.2x250
8x250mm
104
374
228.6x254
9x10
75
200

NON STANDARD / MAKE-UPS

  • NON STANDARD HYDRAULIC TUBING RANGING FROM 40- 1200mm ID WITH ANY WALL THICKNESS CAN BE MADE TO CUSTOMER SPECIFICATIONS.
  • CONTACT US FOR ALTERNATIVE MATERIAL SOLUTIONS
  • NON STANDARD SIZES CAN BE STOCKED ON REQUEST

SPECIFICATIONS
  • ST 52.3
  • TOLERANCE H8
  • STRAIGHTNESS: < 1 mm / 1 m
  • ROUGHNESS: < 0.4 Ra

Standard Stocked Range of Chrome Stock

METRIC

OD (mm)
Kg/m
OD (mm)
Kg/m
16
1.58
56
19.32
18
2.00
60
22.18
19
2.22
63
24.45
20
2.46
65
26.03
22
2.98
70
30.18
25
3.85
75
34.65
28
4.83
80
39.42
30
5.54
85
44.51
32
6.31
90
49.90
33
6.71
95
55.59
35
7.55
100
61.60
36
7.98
105
67.91
38
8.90
110
74.54
40
9.86
115
81.47
45
12.47
120
88.70
50
15.40
125
96.25
55
18.63
130
104.10
56
19.32
140
120


IMPERIAL

OD (mm)
OD (inch)
Kg / m
19.05
3/4
2.22
22.22
7/8
3
25.4
1
3.97
26.98
1.1/16
4.5
28.57
1.1/8
5
31.75
1.1/4
6.25
34.92
1.3/8
7.51
38.1
1.1/2
8.94
44.45
1.3/4
12.17
47.62
1.7/8
13.97
50.8
2
15.90
53.97
2.1/8
17.95
57.15
2.1/4
20.12
63.5
2.1/2
24.84
69.85
2.3/4
30.05
76.2
3
35.77
82.55
3.1/4
41.98
88.9
3.1/2
48.68
95.25
3.3/4
55.89
101.6
4
63.59
107.95
4.1/4
71.78
114.3
4.1/2
80.48
120.65
4.3/4
89.67
127
5
99.35

ALL OF THE FOLLOWING METRIC AND IMPERIAL SIZES ARE AVAILABLE IN

  • CK45 CHROME STOCK
  • EN 8 CHROME STOCK
  • CK50 INDUCTION HARDENED CHROME STOCK
  • PEELED BAR

MATERIAL IS STOCKED BETWEEN 5-6m AND CUT TO SIZE

CHROMED HOLLOW BAR

ODxID (mm)
ODxID (mm)
ODxID (mm)
40x20
50x28
60x40
45x25
56x28
65x45

ANY HYDRAULIC SHAFTS AND CHROMED HOLLOW BAR UP TO 1m IN DIAMETER AND UP TO 12m IN LENGTH CAN BE MADE UP.

STANDARD STOCKED RANGE OF CYLINDER KITS

BORE/ROD(mm)
BORE/ROD(mm)
40x20
50x28
40/20
80/40
40/25
80/50
50/25
90/45
50/30
90/50
60/30
100/50
60/35
100/60
60/40
100/70
63/30
125/60
63/35
125/70
63/40
125/80
70/35
150/80
70/40
160/90

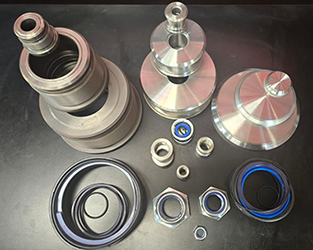

CYLINDER KITS INCLUDE

  • CAST IRON GLAND
  • DOUBLE ACTING PISTON
  • COMPLETE SET OF SEALS AND WIPERS
  • END CAP
  • NYLOCK NUT
  • 2 X WELD ON PORTS (BSP)

COMPONENTS ALSO AVAILABLE INDIVIDUALLY
ANY SIZE CYLINDER KIT, UP TO Ø1.2m, CAN BE MADE UP.
